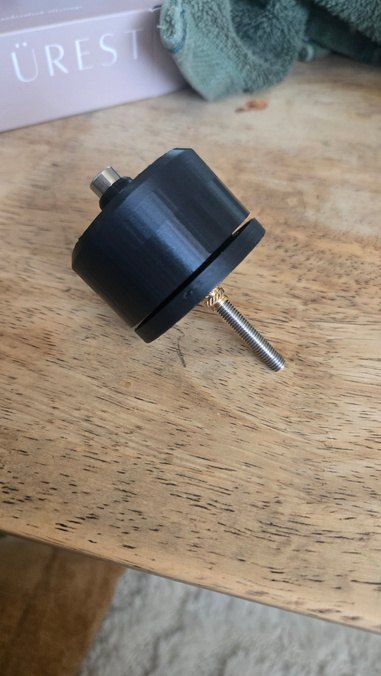

3D Printed BLDC Motor
A brushless motor with a mostly 3D printed structure. A plastic stator leaks a lot of magnetic flux, so I added a steel ring to close the path. Right now I'm balancing turn count against slot fill to land around 150 Kv at 24 V.
